eXotic Carbon Rigid MTB Fork - BLUE STEERER
Carbon fiber stanchions with post mount disc only

Hover over large image to Zoom in+

^^^^^^^^^^^^^^
Total of 9 images
39.0cm 26in Wheel
42.5cm 26in Wheel
42.5cm White 26in Wheel
44.5cm 26in Wheel
44.5cm 26in Wheel Blue Steerer
46.5cm White 650b 29er 700c
49cm 29er
Length:
39.0cm 26in Wheel

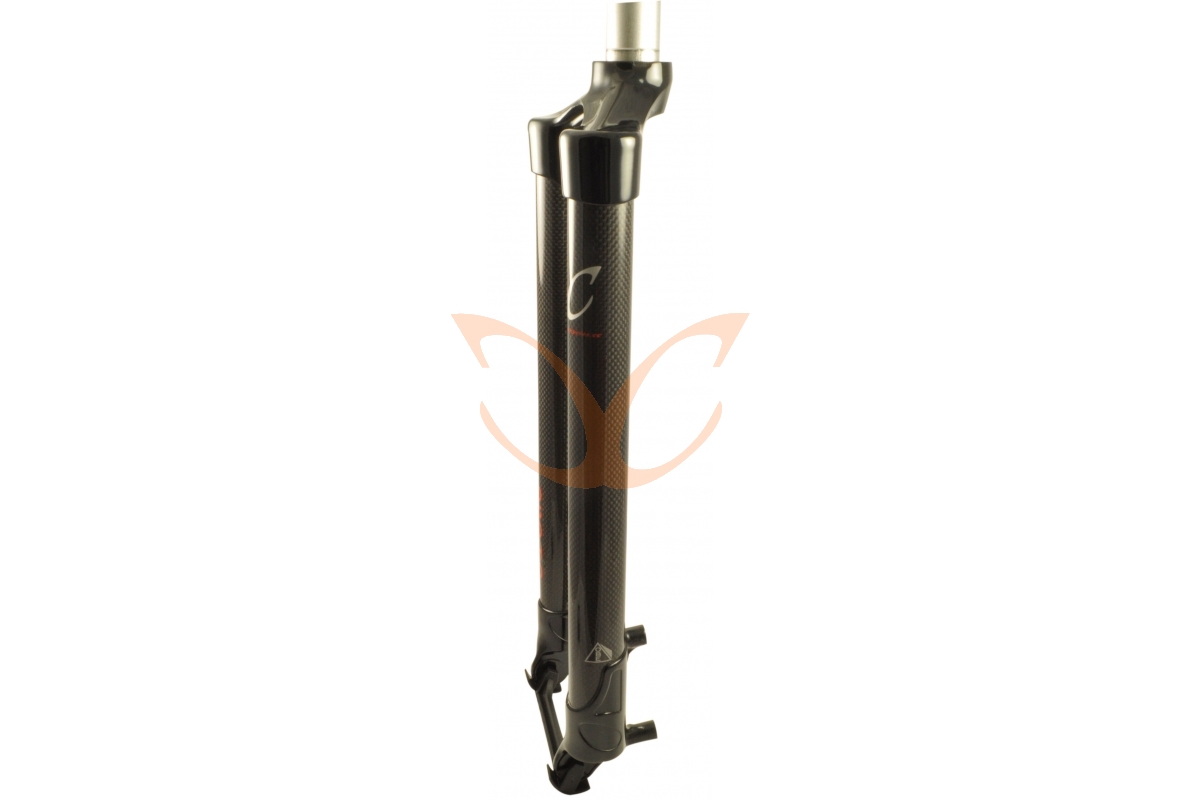

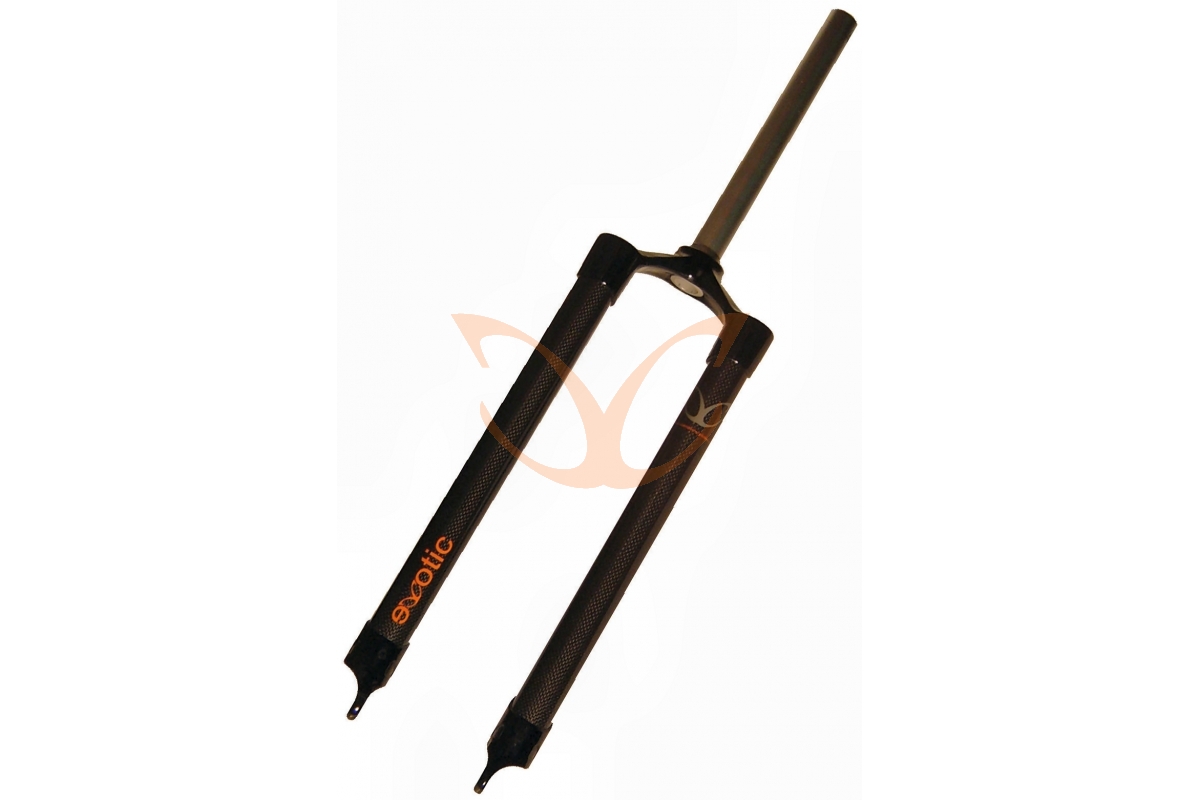

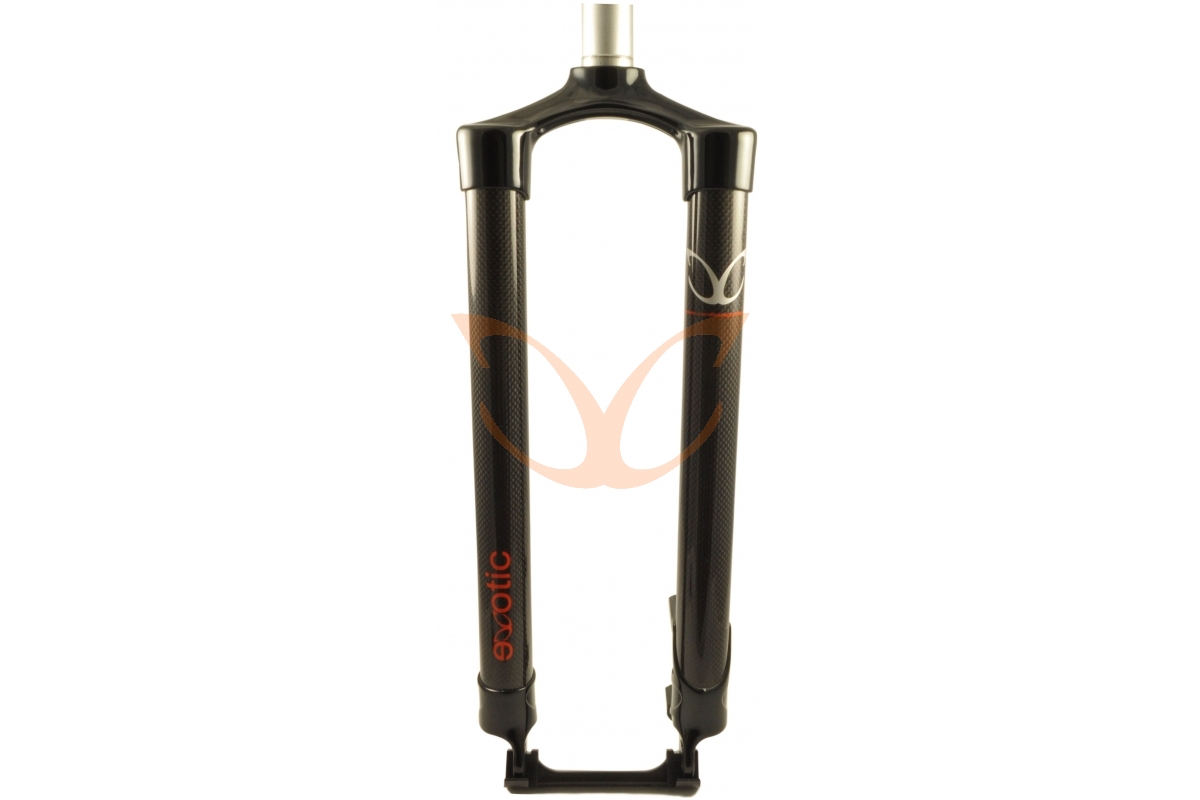

Stunning flagship carbon mountain bike fork with 7075 Al steerer, carbon fiber tube stanchions and forged 6061 Al dropouts.

This fork is disc brake specific and has a Post Mount.

Rigorously tested to EN and DIN standards

Brake Mount  Disc Specific, Post Mount
Steerer Diameter  1 1/8 inch (threadless ahead steerer)
Steerer Material  7075 Al

Uncut steerer length 265mm    Offset/Rake 42mm
Diameter of leg tubes 34mm    Width between dropouts 100mm
Width of fork brace 83mm    Crown to underside of brace 25mm


Options and weight: VIEW FORK SELECTOR

Recommended rider weight limit: 97.5kg (215lbs)

Bike Type Wheel Size Material Brake Mounts Steerer Length Geom' Corrected for Weight Code Comment
MTB  26 in
 		 Carbon (3K)  PM Disc  1.1/8 in 7075 Al  39.0cm  0mm  0.76Kg (1.7 Lbs)  CC-F0E390
see full table



UPC: 5055429917625
Sponsorships and Product Reviews
Length:
42.5cm 26in Wheel

Stunning flagship carbon mountain bike fork with 7075 Al steerer, carbon fiber tube stanchions and forged 6061 Al dropouts.

This fork is disc brake specific and has a Post Mount.

Rigorously tested to EN and DIN standards

Brake Mount  Disc Specific, Post Mount
Steerer Diameter  1 1/8 inch (threadless ahead steerer)
Steerer Material  7075 Al

Uncut steerer length 265mm    Offset/Rake 42mm
Diameter of leg tubes 34mm    Width between dropouts 100mm
Width of fork brace 83mm    Crown to underside of brace 25mm


Options and weight: VIEW FORK SELECTOR

Recommended rider weight limit: 97.5kg (215lbs)

Bike Type Wheel Size Material Brake Mounts Steerer Length Geom' Corrected for Weight Code Comment
MTB  26 in
 		 Carbon (3K)  PM Disc  1.1/8 in 7075 Al  42.5cm  0mm, 80mm  0.77Kg (1.7 Lbs)  CC-F0E25
see full table



UPC: 5055429917625
Sponsorships and Product Reviews
Length:
42.5cm White 26in Wheel

For 26" wheels

Stunning flagship carbon mountain bike fork with 7075 Al steerer, carbon fiber tube stanchions and forged 6061 Al dropouts.

This fork is disc brake specific and has a Post Mount.

Rigorously tested to EN and DIN standards

Brake Mount  Disc Specific, Post Mount
Steerer Diameter  1 1/8 inch (threadless ahead steerer)
Steerer Material  7075 Al

Uncut steerer length 265mm    Offset/Rake 42mm
Diameter of leg tubes 34mm    Width between dropouts 100mm
Width of fork brace 83mm    Crown to underside of brace 25mm


Options and weight: VIEW FORK SELECTOR

Recommended rider weight limit: 97.5kg (215lbs)

Bike Type Wheel Size Material Brake Mounts Steerer Length Geom' Corrected for Weight Code Comment
MTB  26 in
 		 Carbon (3K)  PM Disc  1.1/8 in 7075 Al  42.5cm  0mm, 80mm  0.77Kg (1.7 Lbs)  CC-F0E25W  White
see full table



UPC: 5055429917625
Sponsorships and Product Reviews
Length:
44.5cm 26in Wheel

Stunning flagship carbon mountain bike fork with 7075 Al steerer, carbon fiber tube stanchions and forged 6061 Al dropouts.

This fork is disc brake specific and has a Post Mount.

Rigorously tested to EN and DIN standards

Brake Mount  Disc Specific, Post Mount
Steerer Diameter  1 1/8 inch (threadless ahead steerer)
Steerer Material  7075 Al

Uncut steerer length 265mm    Offset/Rake 42mm
Diameter of leg tubes 34mm    Width between dropouts 100mm
Width of fork brace 83mm    Crown to underside of brace 25mm


Options and weight: VIEW FORK SELECTOR

Recommended rider weight limit: 97.5kg (215lbs)

Bike Type Wheel Size Material Brake Mounts Steerer Length Geom' Corrected for Weight Code Comment
MTB  26 in
 		 Carbon (3K)  PM Disc  1.1/8 in 7075 Al  44.5cm  100mm  0.78Kg (1.7 Lbs)  CC-F0E45
see full table



UPC: 5055429917625
Sponsorships and Product Reviews
Length:
44.5cm 26in Wheel Blue Steerer

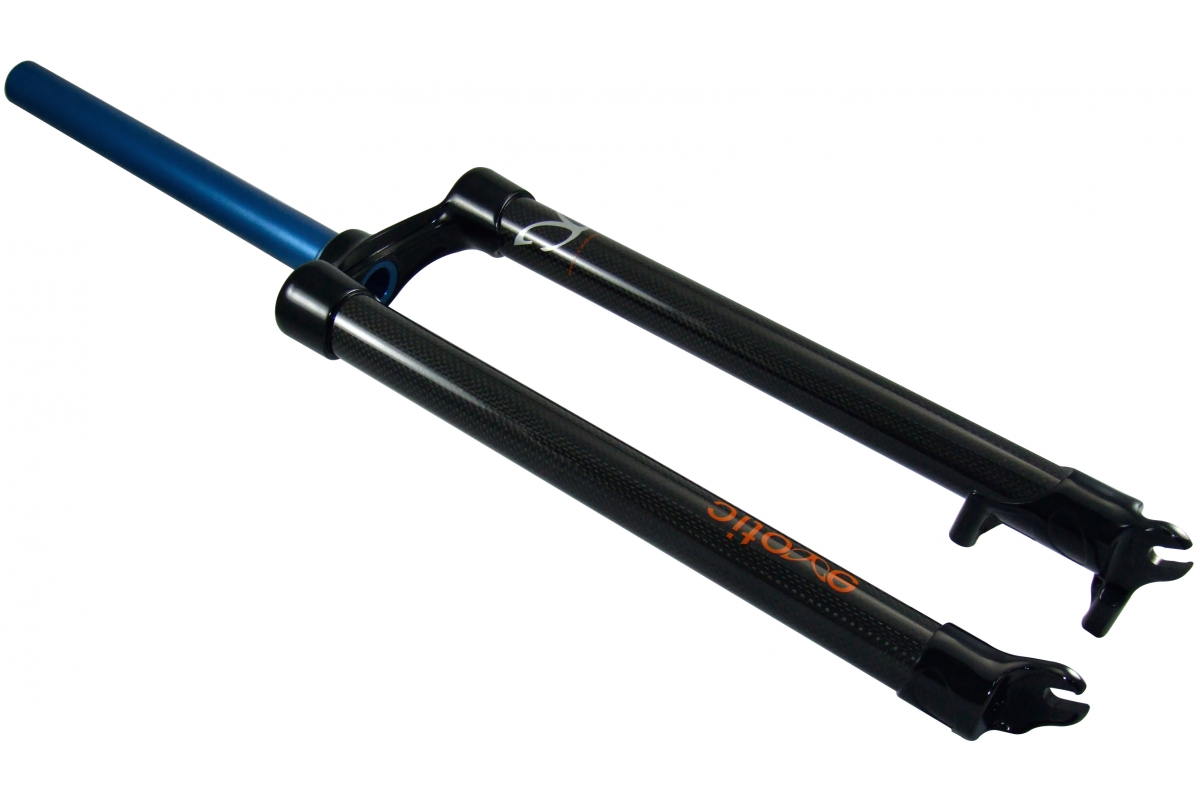

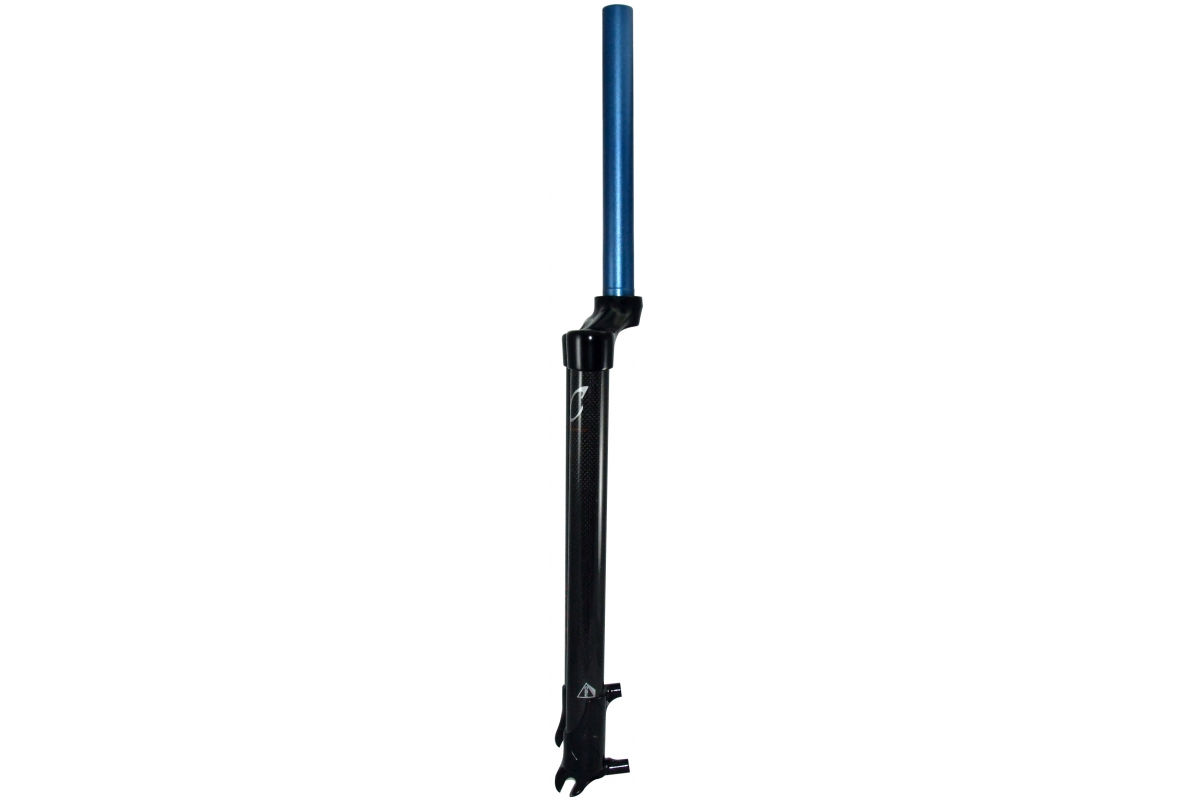

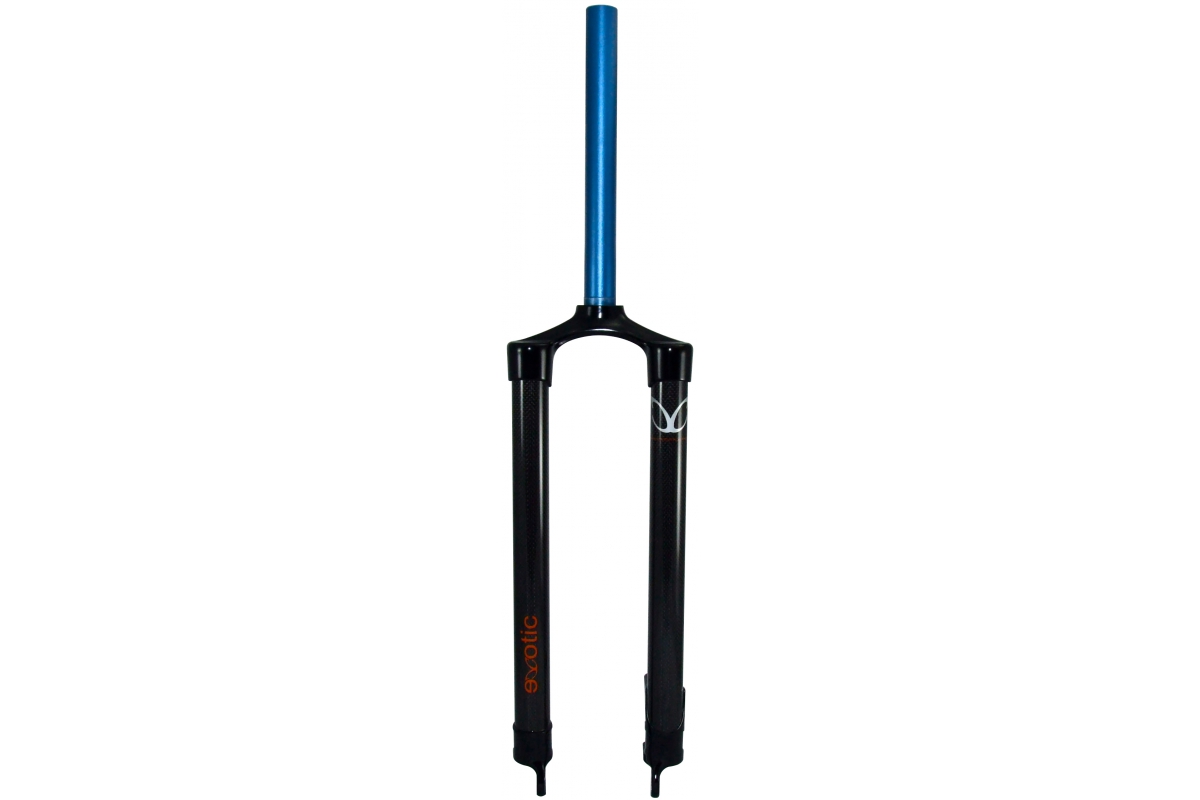

Stunning flagship carbon mountain bike fork with 7075 anodized BLUE COLOUR Al steerer, carbon fiber tube stanchions and forged 6061 Al dropouts.

This fork is disc brake specific and has a Post Mount.

Rigorously tested to EN and DIN standards

Brake Mount  Disc Specific, Post Mount
Steerer Diameter  1 1/8 inch (threadless ahead steerer)
Steerer Material  7075 Al

Uncut steerer length 265mm    Offset/Rake 42mm
Diameter of leg tubes 34mm    Width between dropouts 100mm
Width of fork brace 83mm    Crown to underside of brace 25mm


Bike Type Wheel Size Material Brake Mounts Steerer Length Geom' Corrected for Weight Code Comment
MTB  26 in
 		 Carbon (3K)  PM Disc  1.1/8 in 7075 Al Blue  44.5cm  100mm  0.79Kg (1.7 Lbs)  CC-F0E45SBLU  Blue Steerer
see full table



UPC: 5055429917625
Sponsorships and Product Reviews
Length:
46.5cm White 650b 29er 700c

Stunning flagship carbon mountain bike fork with 7075 Al steerer, carbon fiber tube stanchions and forged 6061 Al dropouts.

This fork is disc brake specific and has a Post Mount.

Rigorously tested to EN and DIN standards

Brake Mount  Disc Specific, Post Mount
Steerer Diameter  1 1/8 inch (threadless ahead steerer)
Steerer Material  7075 Al

Uncut steerer length 265mm    Offset/Rake 42mm
Diameter of leg tubes 34mm    Width between dropouts 100mm
Width of fork brace 83mm    Crown to underside of brace 25mm


Options and weight: VIEW FORK SELECTOR

Recommended rider weight limit: 97.5kg (215lbs)

Bike Type Wheel Size Material Brake Mounts Steerer Length Geom' Corrected for Weight Code Comment
MTB  26 in
650b
29er / 700c
 		 Carbon (3K)  PM Disc  1.1/8 in 7075 Al  46.5cm
26 in:130mm
650b:100mm, 120mm,
29er / 700c:0mm, 80mm,
100mm
 		 0.79Kg (1.7 Lbs)  CC-F0E65W  White
see full table



UPC: 5055429917625
Sponsorships and Product Reviews
Length:
49cm 29er

For 29er

Stunning flagship carbon mountain bike fork with 7075 Al steerer, carbon fiber tube stanchions and forged 6061 Al dropouts.

This fork is disc brake specific and has a Post Mount.

Rigorously tested to EN and DIN standards

Brake Mount  Disc Specific, Post Mount
Steerer Diameter  1 1/8 inch (threadless ahead steerer)
Steerer Material  7075 Al

Uncut steerer length 265mm    Offset/Rake 42mm
Diameter of leg tubes 34mm    Width between dropouts 100mm
Width of fork brace 83mm    Crown to underside of brace 25mm


Options and weight: VIEW FORK SELECTOR

Recommended rider weight limit: 97.5kg (215lbs)

Bike Type Wheel Size Material Brake Mounts Steerer Length Geom' Corrected for Weight Code Comment
MTB  26 in
650b
29er / 700c
 		 Carbon (3K)  PM Disc  1.1/8 in 7075 Al  49.0cm
26 in:150mm
650b:130mm, 140mm,
29er / 700c:100mm, 120mm,
130mm
 		 0.85Kg (1.9 Lbs)  CC-F0E90
see full table



UPC: 5055429917625
Sponsorships and Product Reviews
Only show in stock items
Free Shipping To
code
CC-
F0E45SBLU
44.5cm 26in Wheel, Blue Steerer



 US $157.99

F0E390
39.0cm 26in Wheel



 US $177.89

F0E25
42.5cm 26in Wheel



 US $167.19

F0E25W
42.5cm White 26in Wheel



 US $180.39

F0E45
44.5cm 26in Wheel



 US $167.19

F0E65W
46.5cm White 650b 29er 700c



 US $337.89

F0E90
49cm 29er



 US $185.29
